Picking the perfect material is important for strength and being eco-friendly. We offer environment-friendly recycled paperboard made from post-consumer fibers. This helps reduce environmental impact while providing reliable strength.
Our superior virgin paperboard has a smooth finish and superb durability for a high-end appearance. Brands that wish to project a luxurious image will find it ideal. Our sturdy corrugated fiberboard comes in single-wall or multi-wall choices for additional protection. Because of its strength and impact resistance, this material can be used for heavier or more delicate items, particularly in large or wholesale quantities.

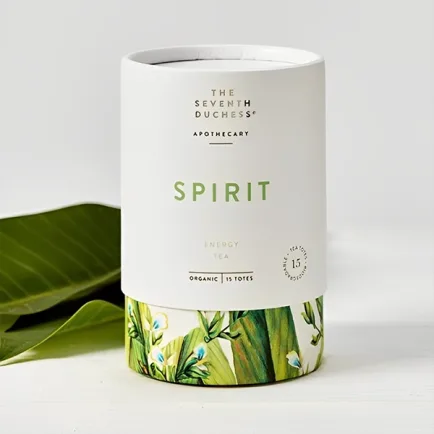

At Custom Packaging Lane, our custom cardboard tube packaging can decrease your carbon footprint while captivating environmentally conscious clientele. From exceptional styles and custom sizes to striking finishes, you can customize every packaging component to ensure your goods hit differently and exert a forceful influence.
Our custom-shaped tubes come in several unique styles, each intended to offer a different visual impact and functional edge:
This design features a pronounced shoulder that creates extra space for creative design elements. The top lid sits slightly back from the bottom, exposing a portion of the tube’s shoulder for an elegant, modern look.
With partial cover tube packaging, the top lid covers only a portion of the bottom section. This style results in a balanced look where the top is intentionally shorter than the base, allowing for a distinctive layered appearance.
A seamless, protective enclosure is created in full-cover packaging when the top lid matches or extends past the length of the bottom section. This design is impeccable for showcasing complex designs on the top lid, which is the main visual focal point.
The rolled-edge neck style flattens the tube’s edge for a finished look. This ensures a constantly immaculate look while adding a graceful touch and protecting the tube’s opening from scratches during handling.
The non-rolled edge neck offers a raw, unpolished finish if you prefer a more rugged, natural look. This style is ideal for brands seeking a rustic or industrial aesthetic, where a more demanding, straightforward design is part of the charm.
Our black tubes are a superb choice for an innovative look. They catch the eye and are outstanding on store shelves. These tubes merge style and functionality effectively, ensuring your product is distinctive and captures emotions. With their bold design, they help showcase your brand effectively.
At Custom Packaging Lane, you can modify your cardboard packaging by adding thoughtful features that efficiently use style and functionality. These are the following extras that can be added:
Add-Ons & Custom Features
Printing Options
Finishes options
Lamination Options
If you are looking for “cardboard tube packaging near me” on Google, our all-inclusive packaging solution can handle any need, from bulk wholesale orders to custom designs. With a 100% satisfaction rate and the ability to accommodate small or a low 100-unit minimum quantities for your cardboard tube packaging wholesale, we are dedicated to putting the needs of our customers first. You can take advantage of our price match guarantee, free shipping, quick lead times, and exclusive offers.
Moreover, we offer a free sample kit and provide both 3D and physical mockups. This way, you can visualize and refine your ideas effectively. Our streamlined, cost-optimized logistics further guarantee a smooth ordering experience from start to finish. Contact our expert team by calling us at (833) 327-5627 or emailing us at inquiry@custompackaginglane.com.
In stock · sample kit ships in 2 to 6 business days
Finished wrap width begins with the tube's outside circumference, then the converter adds the seam overlap and trim required by its equipment. Place artwork on the approved dieline and keep logos, small type, and barcodes clear of the vertical seam, closure edge, and any cutout. A three-dimensional mock-up should show the intended front panel when the cylinder is closed and standing upright.
Raster images must retain enough detail at full wrap scale, and backgrounds need the marked bleed to avoid an unprinted line after trimming. Colors selected from a monitor should be converted through the chosen output profile and judged on the curved production surface. Digital print is practical for short or versioned runs. Offset print becomes a useful comparison for longer runs with controlled color and broad ink coverage. Matte lamination softens glare, gloss lamination increases reflectivity, and spot UV needs accurate registration on the curved wrap.
Inside diameter and usable internal height determine whether the packed item will load, close, and release cleanly. Measure the widest packed point, including a cap, label overlap, protective bag, or protruding base. Usable height excludes space taken by the lid, shoulder, end disc, or insert, so the product's overall height cannot be copied directly into the tube specification.
| Measurement | Record from the packed item | Production decision |
|---|---|---|
| Maximum diameter | Widest point with labels and caps fitted | Minimum internal clearance |
| Overall height | Base to highest packed point | Usable cavity height |
| Closure depth | Space occupied by the seated lid | Length unavailable to the product |
| Insert stack | Top and bottom support thickness | Remaining vertical space |
Use the packed candle, not the empty vessel dimensions, when evaluating candle tube packaging or black paper candle tubes. A label edge or lid rim can be wider than the container body.
Spiral-wound construction places paper plies on a diagonal path, while convolute construction wraps sheets around the circumference. Those methods leave different underlying seam patterns. Heavy solid ink, soft-touch lamination, or a light-colored wrap can reveal ridges differently, so the printed layer should be evaluated on the intended tube rather than as a loose flat sheet.
A press check examines seam registration, ink laydown, cap alignment, scuffing, and the position of the viewing front while production settings can still be adjusted. Rotate the assembled piece under consistent light and inspect the closure line as well as the vertical join.
A friction-fit paper cap, paperboard end disc, or telescoping lid changes both the loading opening and the available cavity. Inserts should grip the product without being cut to its exact outline, because room is needed for loading and material compression. Too much clearance causes rattle; too little can scrape labels, wrinkle wraps, or prevent the lid from seating.
C1S or C2S paperboard can be used for collars, end components, and printed outer elements. The score direction, adhesive area, and finished lamination thickness affect how those parts assemble. Open the sample kit page to compare print surfaces and finishes before approving the final combination.
Outer-case planning should use the closed tube diameter, closure projection, and actual row pattern. Round packs leave unused corner space when arranged in a rectangular case, so a volume-only calculation overstates the count. Dividers can stop printed cylinders from rubbing, and orientation marks help keep caps loaded consistently.
Record units per case, case footprint, packed weight, stack pattern, and pallet count during the trial pack. Cylindrical metal formats raise similar closure and nesting questions, which appear in the custom tin and metal packaging hub.
