A three-dimensional packaging mockup is a visual representation of the assembled package, while a digital proof shows the proposed artwork and layout before production. For pharmaceutical and diagnostic lines, the useful question is whether the mockup matches the product footprint, packout, opening, and visible copy. Custom Packaging Lane is a US-based packaging supplier with free design support and a proof step tied to the supplied brief.
What should a pharma packaging mockup show?

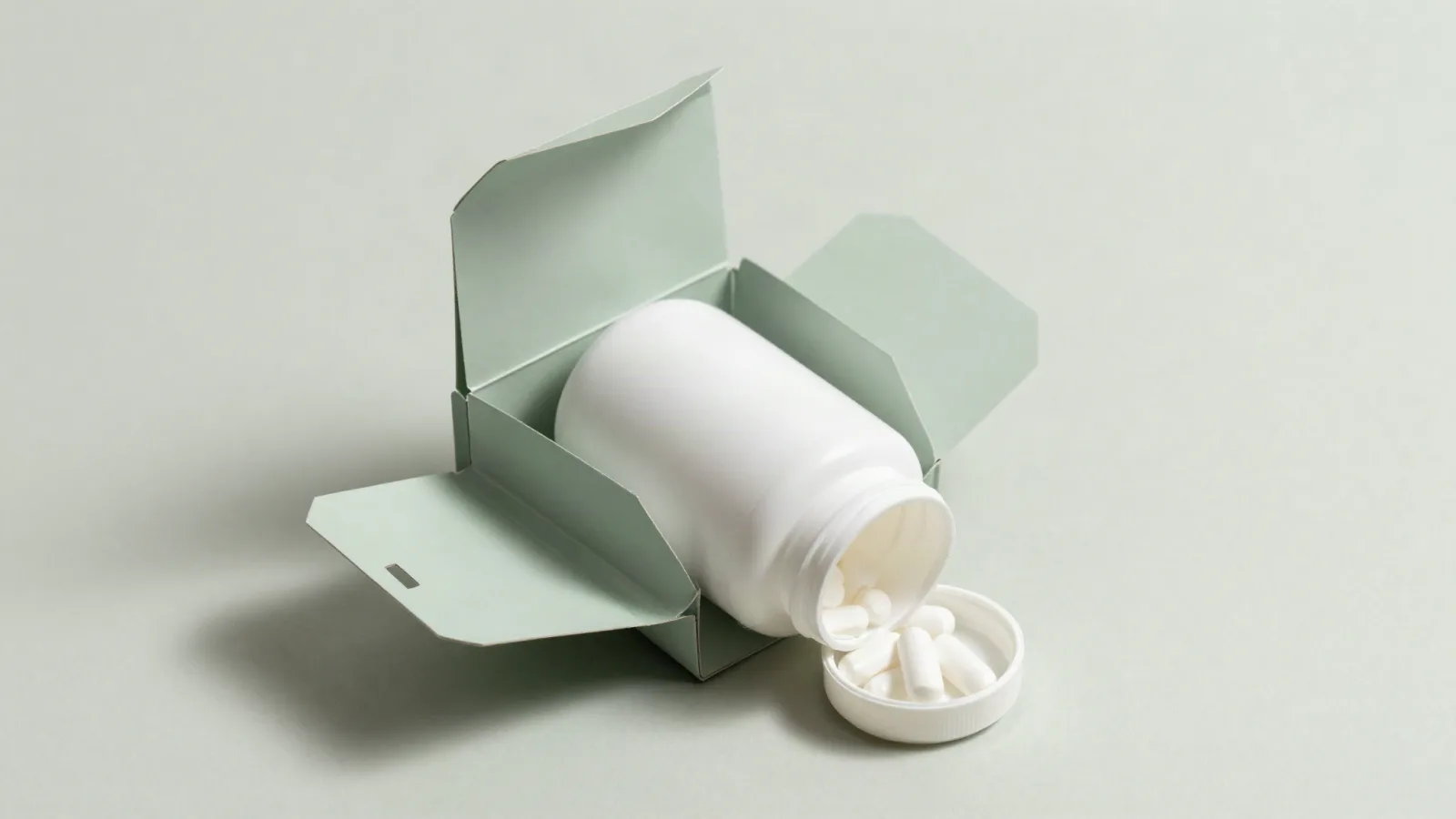

A useful pharma packaging mockup shows the package form, product footprint, packout, panel order, closure, and artwork placement.
Send the dimensions of the bottle, kit, diagnostic component, or other item; then state how many pieces sit in the package and whether an insert, label, or mailer is part of the job. A box that looks correct empty can pinch a component, hide a panel, or leave the opening on the wrong side once the product is packed.
Show the front, back, sides, top, bottom, and any opening path. If there is a barcode, keep it on a flat panel with clear space around it and away from a fold, score, or glue seam. That is a packaging check, not a product claim.
How does free design support move from brief to proof?
Free design support turns the supplied measurements, packout, copy, and brand files into a package direction and digital proof.
| Stage | What you provide or check | What the stage settles |
|---|---|---|
| Brief | Product dimensions, packout, brand files, copy, and format | The physical and visual starting point |
| Dieline | Cut lines, scores, glue tabs, panels, and opening | How the package folds and closes |
| Artwork review | Panel order, barcode, folds, color, and copy | What the customer sees and reads |
| Proof approval | Final visible design and proposed configuration | The point before production |
A dieline is the flat cutting template used to lay out the package before it is folded or assembled. The digital proof is the file you review before production. Read copy at the actual panel size, inspect the seam, and check the opening sequence before approving it. The production clock starts after proof approval.
What should the proof show about structure and print?
The proof should show how the package folds, closes, and reads in the hand, not only a polished front view.
Scores mark fold lines, glue tabs join panels, and an insert controls where the product sits. Keep type away from a score, cut line, or glue area. RGB artwork can shift when converted for press; low-resolution logos can go soft; bleed should extend past the cut line as standard prepress practice. If the project uses a window or perforated opening, check what remains visible after assembly.
Does a pharma packaging proof confirm product requirements?
No. A mockup and digital proof confirm a proposed package structure and visible artwork; they do not decide the technical, legal, medical, or regulatory requirements for a pharmaceutical or diagnostic product.
Keep the final assessment with the appropriate internal reviewers. Their review should cover the product, label copy, package materials, intended use, and any market requirements. Custom Packaging Lane's design support helps prepare the package for review; it does not replace that review.
Which CPL formats can pharma teams compare?
Compare private label packaging for a shared brand system, perforated packaging for a defined tear path, and wine box packaging for a structured carton reference. These are format examples, not statements that a catalog page settles pharmaceutical suitability. The product dimensions and packout still control the quote.
What belongs in a pharma packaging quote?
A pharma packaging quote should name the physical package, artwork scope, and review inputs.
- Product or diagnostic component dimensions.
- Pack count, arrangement, insert, and opening path.
- Brand files, required copy, and panel priorities.
- Box or mailer format, material direction, and finish.
- Quantity, destination, and the internal assessment steps you require.
Send a rough layout if you have one. If not, free design support can organize the brief into a dieline and digital proof. A complete brief reduces redraws caused by a late dimension, missing bleed, or copy placed across a score.
What are the order terms for pharma packaging?
The MOQ is 100 units. Pricing is from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are available. The custom packaging design guide can help organize the brief. A $19.99 sample kit gives teams physical material and finish references before proof approval. The sample kit is credited toward the first order.
Frequently Asked Questions
Does Custom Packaging Lane offer free pharma packaging mockups?
Custom Packaging Lane offers free design support and a digital proof that can be used to review a pharmaceutical or diagnostic packaging mockup. Send the product dimensions, packout, brand files, required copy, and preferred box or mailer format. The mockup direction should match the actual product footprint, while technical, legal, medical, and regulatory review stays with your organization.
Can a pharma packaging mockup confirm regulatory suitability?
A pharma packaging mockup cannot confirm regulatory suitability. It shows a proposed package form, artwork layout, closure, and opening path for review. Your organization must assess the product, label copy, package materials, intended use, and market requirements through its own technical, legal, medical, and regulatory process before approval.
What files and measurements should I send for a pharma mockup?
Send product or diagnostic component dimensions, pack count, arrangement, insert details, opening preference, brand files, required copy, and any rough layout. RGB artwork may shift when converted for press, and a late dimension can change the dieline. Free design support can organize the supplied information into a digital proof for review.
Which box formats can a pharma project compare?
A pharma project can compare structured boxes, mailers, private label packaging, perforated packaging, and other formats against the product footprint and packout. Private label packaging can frame a shared brand system, while perforated packaging defines a tear path. These are format references, not a decision about pharmaceutical suitability.
What is the production timeline after pharma proof approval?
Production for pharma packaging is typically 8 to 10 business days after proof approval, plus delivery. The production window starts after the dimensions, artwork, proof review, and approval are complete. The MOQ is 100 units, pricing is from $0.49 per unit at volume, quoted to spec, and free US shipping is available.
