Packs in a carton describes a packaging system, not one universal box shape. The individual pack may hold the product, the carton may group or present several packs, and a larger case may protect the carton during delivery. A clear brief names each layer and records how the layers are filled, closed, stored, displayed, and shipped. The wholesale custom packaging hub is a useful place to organize that multi-layer conversation.
What does packs in a carton mean for a packaging brief?
Begin by separating primary, secondary, and shipping functions. Primary packaging is the layer closest to the product. A carton can then group individual packs, create a retail presentation, or provide a carrying structure. A shipper may surround the carton for parcel handling. Do not assume the word carton identifies the board, the pack count, or the shipping role. Supply those details explicitly.

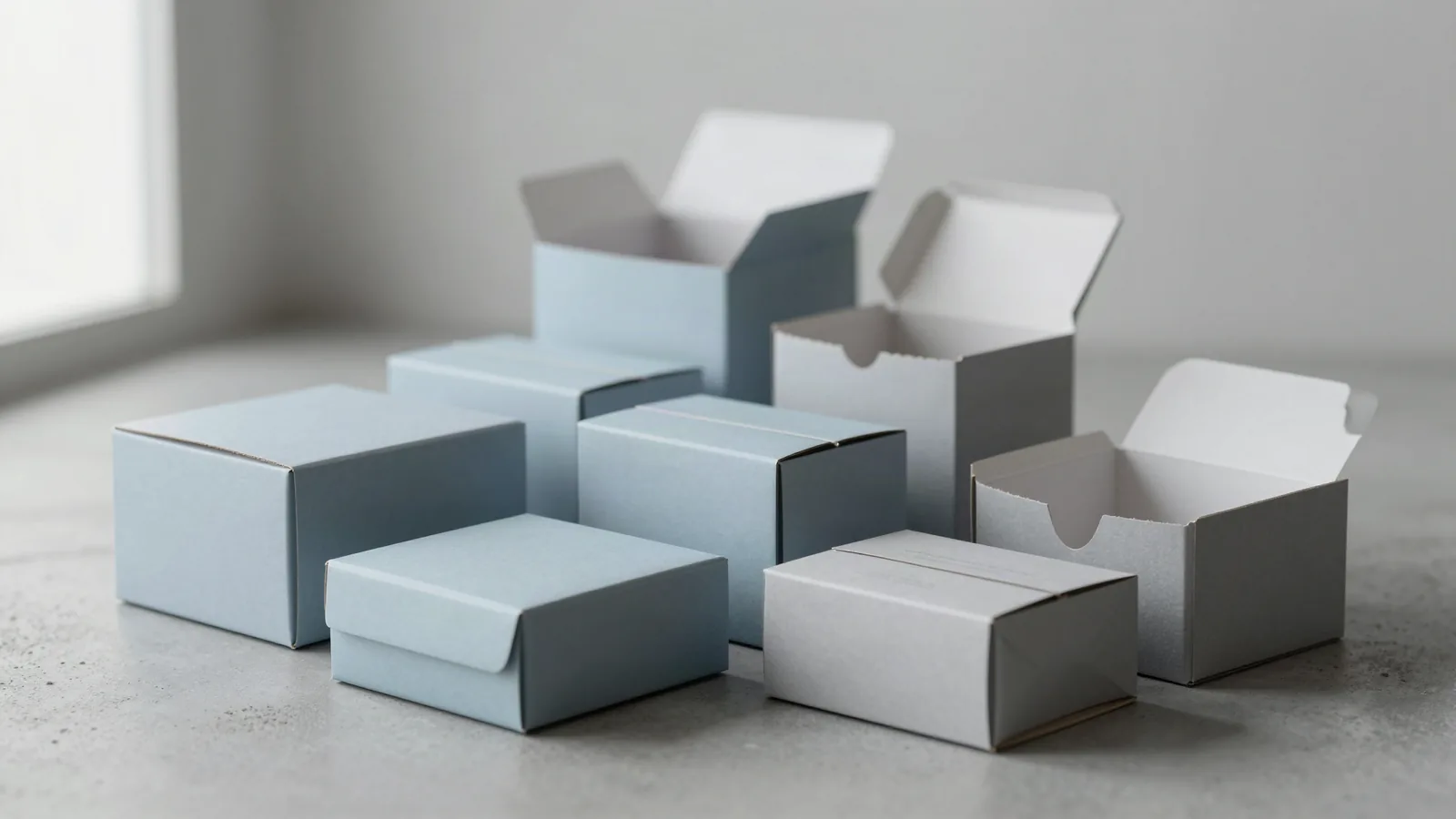

The supplied carton format reference can help map panels, closures, and a grouped-pack presentation. It is a catalog example, not a claim that every product uses the same dimensions or internal arrangement. When building the brief, name the product, the individual pack, the carton, and the case separately.
| Packaging layer | Common role | Information to supply |
|---|---|---|
| Individual pack | Contains or presents one product unit | Product size, orientation, wrap, insert, and closure |
| Carton | Groups packs or creates the retail presentation | Inside cavity, loading pattern, panels, and opening |
| Shipping case | Protects the carton during handling and delivery | Outer size, case arrangement, flute, and stacking direction |
How should I choose the carton board and structure?
For a folding carton, SBS, C1S, and C2S paperboard from 12 to 24 pt are common references. Kraft board around 18 to 24 pt can support a natural visual direction. A more substantial presentation may use rigid chipboard around 1.5 to 3 mm wrapped in 100 to 157 gsm art paper. The suitable board follows the product weight, number of packs, opening motion, panel span, stacking condition, and whether the carton is an inner package or an outer parcel.
Common structures include straight tuck end, reverse tuck end, auto-lock bottom, crash-lock bottom, sleeve, gable, pillow, drawer or slide, magnetic flap, and two-piece rigid. A roll end tuck top mailer and FEFCO 0427 are common references when a carton also needs a parcel-style opening. Use the catalog carton example to discuss panel logic, then replace its assumptions with the actual packed arrangement.
What dimensions should I give for packs in a carton?
Record the individual pack first, then the carton cavity around the selected arrangement. State dimensions as length x width x depth and identify inside or outside measurements. A common packaging convention allows about 1/16 in, or 1.5 mm, tolerance, but clearance depends on wraps, inserts, pack friction, closure pressure, and loading direction. Include the orientation of every pack so the carton is not sized from a simple row of loose measurements.
Use the carton panel reference when checking the outer arrangement. Give the carton outer size and the shipping case outer size separately. Check how packs nest, whether the carton needs dividers, and whether the case is loaded upright or on its side. If a window is part of the presentation, PET around 0.2 to 0.3 mm is a common reference, but the opening must leave enough board around the cavity.
How should packs in a carton be printed?
Offset CMYK is commonly used for detailed paperboard graphics. Digital printing can suit short runs or version testing. Flexo is more commonly used for corrugated shipping components. Decide whether the carton needs full coverage, a front-panel mark, variable pack information, or a restrained natural-board look. Map the reading direction across every panel and keep key information away from scores, glue flaps, tuck edges, and case contact points.
Matte or gloss lamination changes reflectivity. Soft-touch adds a tactile surface. Spot UV, foil stamping, embossing, and debossing can create hierarchy on selected panels. Window patching adds another construction step. Review the assembled carton with the individual packs inside so artwork, opening, count presentation, and product visibility are evaluated together.
How does the shipping case change the carton decision?
Corrugated E, B, and C flutes are commonly compared for outer packaging, with 32 ECT as a common board reference. The right direction depends on the case role, stacking, product movement, and the amount of separation between cartons. US ground dimensional weight commonly uses L x W x H / 139, so the outer case dimensions and packing pattern can affect the delivery plan. Treat the case as its own design object.
What should I include in a carton-system quote?
- Describe the individual pack, carton role, shipping-case role, and how each layer is filled and opened.
- Provide product, pack, carton, and case dimensions as length x width x depth, with inside or outside labels.
- Identify board, caliper, flute, dividers, inserts, windows, closures, stacking direction, and loading pattern.
- Mark print coverage, CMYK or flexo direction, lamination, soft-touch, spot UV, foil, embossing, or debossing.
- Share destination, case arrangement, artwork status, proof checkpoints, and the closest supplied catalog format.
CPL quotes to spec from a 100-unit minimum, with pricing from $0.49 per unit at volume. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping, free design support, and a free dieline are available. The $19.99 sample kit is credited to the first order.
Frequently Asked Questions
What does packs in a carton mean?
It usually describes more than one packaging layer: an individual pack, an outer carton that groups or presents packs, and possibly a shipping case. Define each layer by its product role, opening method, dimensions, board, and handling route. Do not assume a pack count, carton structure, or shipping configuration without specifying it.
How should I measure a carton that holds packs?
Measure each pack as it will be loaded, including wraps, inserts, and closures. Then map the arrangement inside the carton and record length x width x depth using inside measurements for the cavity. A common convention allows about 1/16 in, or 1.5 mm, tolerance, but clearance depends on friction, loading direction, separators, and the opening.
Which board is common for a grouped-pack carton?
SBS, C1S, and C2S paperboard from 12 to 24 pt are common folding-carton references. Kraft board around 18 to 24 pt may suit a natural surface. Rigid chipboard around 1.5 to 3 mm wrapped in 100 to 157 gsm art paper is a different construction for a more substantial presentation. Choose after mapping load and closure.
Should the carton and shipping case use the same structure?
Not necessarily. The carton may prioritize retail presentation, pack grouping, and opening, while the case may prioritize movement control, stacking, and outer handling. Compare folding structures with corrugated E, B, or C flute references and a 32 ECT reference where appropriate. Design each layer around its job, then check the complete packed system.
How should artwork be organized for a carton system?
Map the individual pack, carton, and case as separate artwork objects. Identify front direction, panel order, scores, glue flaps, closures, windows, barcodes, and contact areas. Offset CMYK is common for detailed paperboard graphics, while flexo is more common for corrugated shipping components. Review the assembled carton with the packs loaded before approving the layout.
