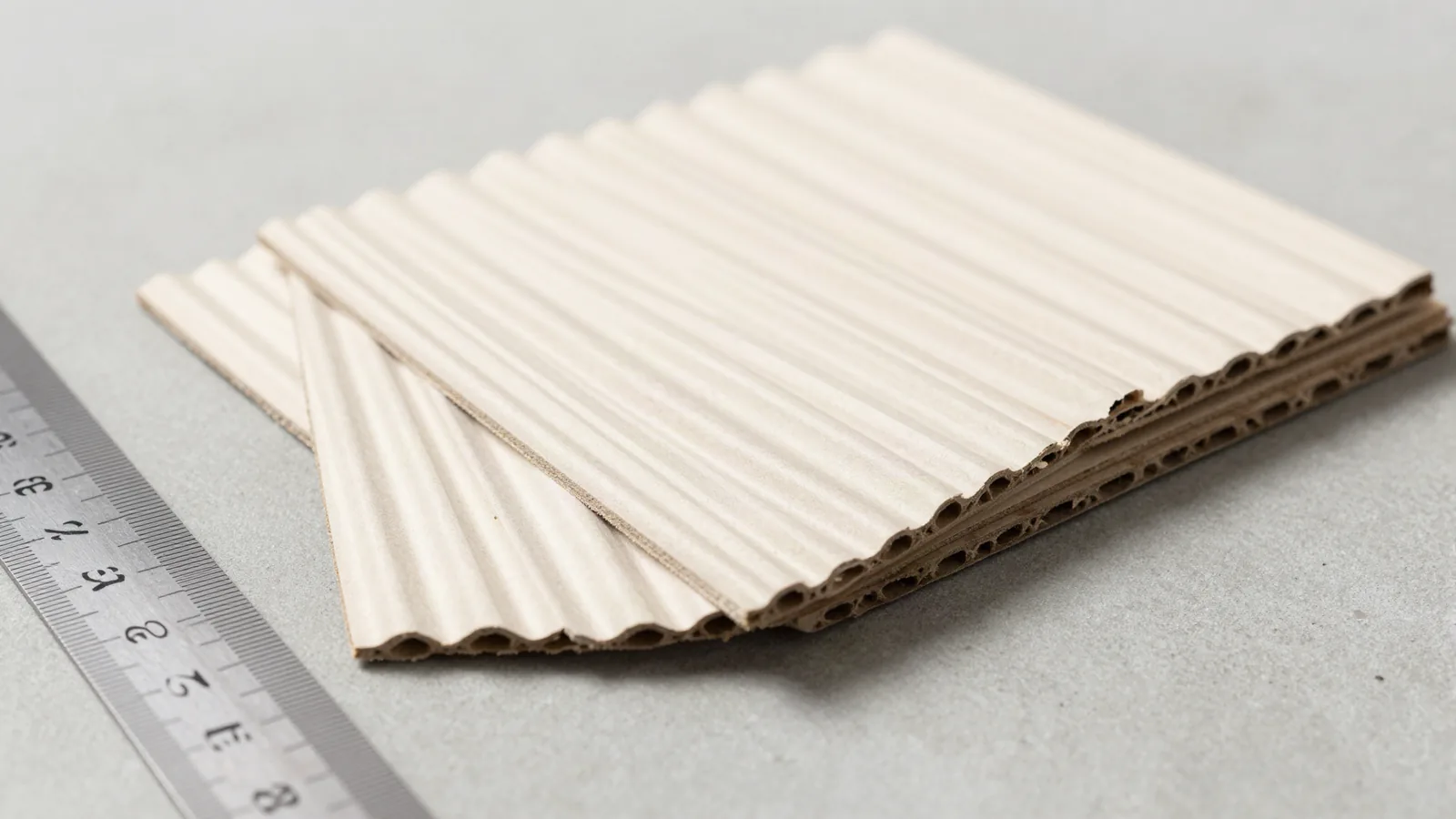

A cardboard flute is the shaped paper layer between the liner sheets in corrugated board. The flute creates the board profile, changes panel stiffness and cushioning, and affects how a box folds and prints. A flute letter is a material label, not the finished box specification. The liner, adhesive, board caliper, scores, closure, inserts, and box footprint all belong in the same review.
What do A, B, C, and E mean in cardboard flute?
A, B, C, and E are corrugated flute labels that identify different paper profiles inside the board. Typical industry reference calipers are approximate, because mill construction, liner combinations, and wall combinations change the finished board.
| Flute | Typical industry reference caliper | Usual material behavior | First check |
|---|---|---|---|
| A | About 1/4 inch, or 6 mm | Thicker profile with cushioning and panel stiffness | Product load and interior clearance |
| B | About 1/8 inch, or 3 mm | Thinner profile with firm folds and a compact print surface | Scores, inserts, and packed footprint |
| C | About 3/16 inch, or 4 mm | Middle profile with cushioning and stacking balance | Box footprint and stacking path |
| E | About 1/16 inch, or 1.5 mm | Thin profile with fine print and compact folds | Print detail and product protection |
Which cardboard flute is thickest?
A flute is usually the thickest of A, B, C, and E, while E is usually the thinnest. A thicker profile leaves more material between liners, which can add cushioning and panel stiffness, but thickness also changes interior clearance, fold behavior, and the space available for inserts. The same flute does not create the same box result in every footprint.
Does flute choice determine stacking strength?
Flute choice contributes to stacking strength, but the finished box determines the result. Box footprint, panel height, score layout, liner selection, product load, closure, pallet pattern, and humidity all affect how a carton carries a stack. A broad shallow box can behave differently from a compact box made from the same flute.
Ask for the finished construction rather than a letter alone. The quote should identify the flute, caliper, wall construction, box style, and product load under discussion.
Which flute suits a box with inserts?
E flute often suits a printed carton with inserts because its thin profile supports fine print and neat folds. A or C flute can make more sense when cushioning, panel stiffness, or extra interior protection matters. An insert cut to the exact product size can stop the product from rattling, but the insert must leave room for the board, scores, and closure.
What should I put in a cardboard flute request?
Send the product footprint, packed height, box style, opening direction, expected handling, artwork status, finish, insert or divider plan, and target quantity. A dieline is the flat cutting template used to map panels, scores, glue tabs, and cutouts. Ask CPL to place the proposed flute and caliper on the material record before proof approval.
- Name the box style and opening direction.
- Describe the product load and interior clearance.
- Request the proposed flute, caliper, and wall construction.
- Identify print panels, scores, glue flaps, and inserts.
- Ask how finished boxes nest in a master carton and how the pallet plan is handled.
A master carton is the outer carton that groups finished boxes for shipment. Write that packing step into the request when carton count, storage, or pallet handling matters.
Which CPL products should I compare?
Start with kraft cardboard boxes when the board direction is part of the brief. For an insert-based structure, compare custom cardboard boxes with inserts. If the package uses a cylindrical paperboard format, cardboard tube packaging gives you a separate construction reference. Use the product pages to define the project, then confirm the selected stock and finished structure in the quote.
What are the order terms for flute-based packaging?
Use the custom packaging solutions page when the flute choice needs to be coordinated with structure, artwork, and quantity. The MOQ is 100 units. Pricing is from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are available. The $19.99 sample kit is credited toward the first order and can help compare board and finish directions before proof approval.
Send the product footprint, box style, insert plan, and artwork, then ask CPL to put the flute, caliper, and wall construction into the quote and digital proof.
Frequently Asked Questions
What is a flute caliper?
A flute caliper is the approximate thickness of corrugated board measured across the finished sheet. Typical reference values are about 1/4 inch for A flute, 3/16 inch for C flute, 1/8 inch for B flute, and 1/16 inch for E flute. Mill construction and wall combinations can change the finished measurement.
Is A flute stronger than E flute?
A flute is thicker and usually provides more cushioning and panel stiffness than E flute, which has a thinner profile and finer print surface. That comparison does not decide stacking strength by itself. Box footprint, liners, scores, closure, product load, and handling still need review in the finished construction.
Does B flute make a box smaller?
B flute has a thinner typical profile than A or C flute, so it can leave more interior clearance in a box with the same outside dimensions. The dieline, scores, inserts, liner combination, and closure still determine the finished fit. Ask CPL to confirm the board caliper and interior dimensions in the proof.
Can inserts change the flute choice?
Inserts can change the flute choice because they use interior space and affect product protection. E flute can suit fine printed cartons with neat folds, while A or C flute can suit a box that needs more cushioning or panel stiffness. Share the insert shape and product clearance before the flute is selected.
What are the order terms for custom flute packaging?
Custom flute packaging has a 100-unit MOQ. Pricing is from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are available, and the $19.99 sample kit is credited toward the first order.
