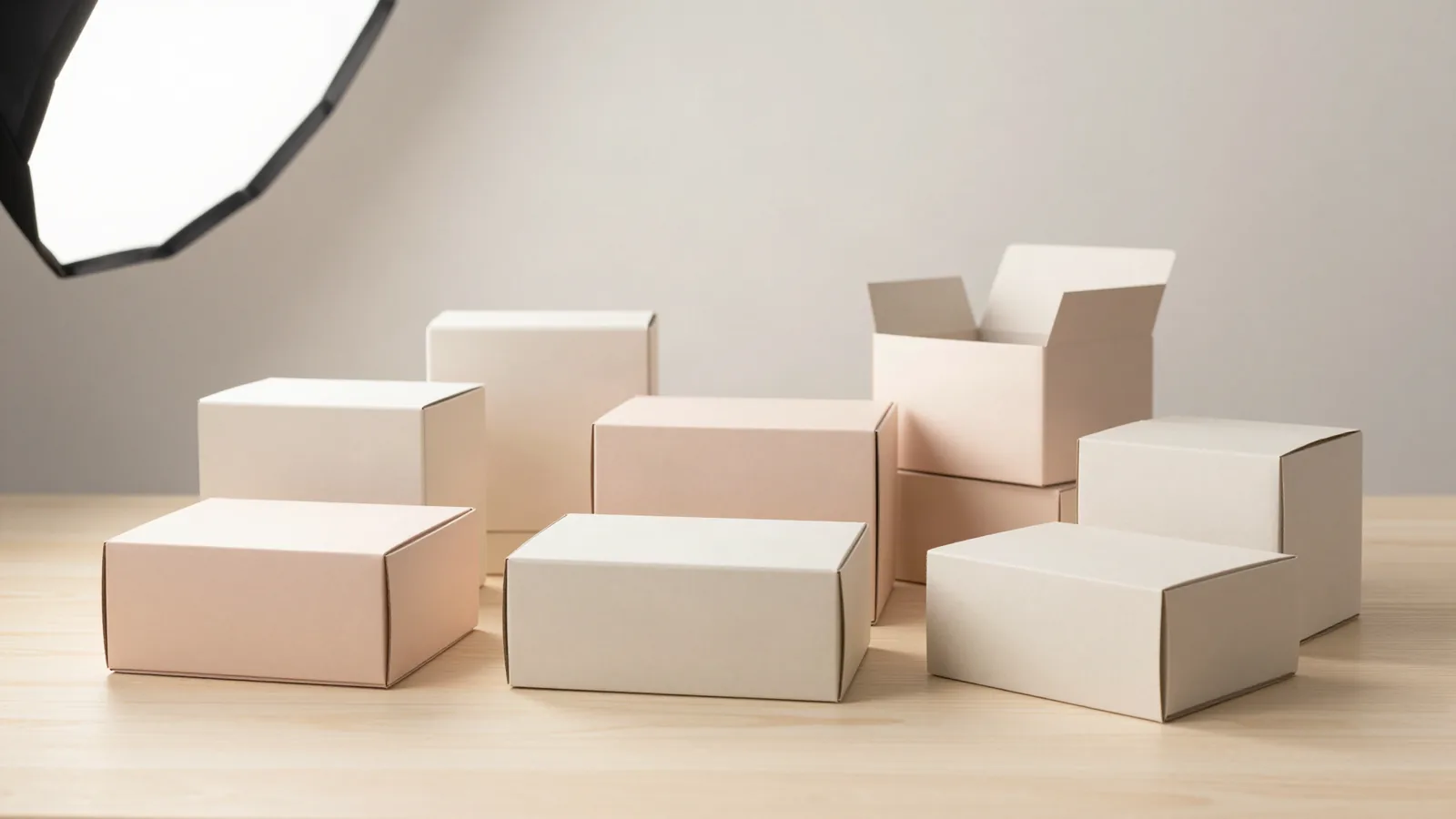

A crash box is a folding carton with a crash-lock bottom. Its flat blank is cut and scored, then the base panels fold into a locked shape when the carton is opened. That bottom affects the product cavity, glue tabs, packing motion, and the way the filled carton stands. Start with the product in its packed position, not with a stock box name. Measure the item, any insert, and the clearance needed to remove it without catching on a flap.
What is a crash-lock bottom box?
The locking base is made from folded panels and tabs that hold the bottom closed after setup. That construction can reduce manual bottom assembly compared with a carton that needs the base folded and tucked by hand, but the result depends on the dieline, board, glue pattern, and product load. A dieline is the flat cutting template that shows the cuts, scores, glue areas, and artwork boundaries before the carton is made.
Check the bottom in its assembled form. A flat file can look correct while a score sits too close to type, a tab catches during erection, or the product presses against the lock. The pack-out sequence belongs in the review: open, fill, close, lift, and place the carton as the operator will.
Which products can use a crash box structure?
Product shape and pack-out decide the fit. Wine box packaging is a useful reference for a tall, defined cavity. Shoe box packaging gives you a comparison for a wider opening and larger footprint. Embossed tin boxes show a rigid metal direction, while custom foam box inserts can be reviewed when the product or accessories need separate cavities inside the carton. The crash box still needs to be sized around the real product and the way it enters the package.
Which paperboard grades are common for a crash box?
Paperboard references for folding cartons include SBS, C1S, and C2S in the typical 12 to 24 pt range. Kraft board is commonly specified in the typical 18 to 24 pt range when the natural board surface is part of the design. SBS means solid bleached sulfate, C1S means coated one side, and C2S means coated two sides. Caliper, the board's thickness, affects crease behavior, base stiffness, glue placement, and the fit of the locking panels.
| Board reference | Typical industry range | What to check |
|---|---|---|
| SBS, C1S, or C2S | 12 to 24 pt | Print coverage, crease behavior, and base fit |
| Kraft board | 18 to 24 pt | Surface tone, ink contrast, and fold behavior |
| Crash-lock bottom | Locked base construction | Glue tabs, scores, and product load |
| Mailer comparison | Roll end tuck top, commonly linked with FEFCO 0427 | Parcel opening and outer-package fit |
How should I measure a crash box?
Use inside length x width x depth for the usable cavity, then list outside dimensions separately. About 1/16 in, or 1.5 mm, is a common planning tolerance. Measure the product with its lid, cap, accessory, wrap, and insert in the position they will occupy. Leave clearance for the folded base panels and locking tabs. A product measurement copied straight onto a flat blank can make the assembled box too tight.
What print and finish choices fit this structure?
Offset CMYK suits detailed folding-carton artwork. Digital printing can suit artwork testing or shorter runs, while offset becomes the comparison when the run needs production-scale sheet printing. There is no universal process crossover without the quantity and artwork details, so ask for both options when the run is near that decision. Matte or gloss lamination changes sheen and reflection, while soft-touch changes the surface feel. Spot UV, foil stamping, embossing, and debossing can isolate a mark or create texture.
Put every effect on the dieline, then keep it clear of scores, glue areas, locking tabs, and seams. Convert RGB artwork to the intended press color space before proof approval, because conversion can shift color. At a press check, compare solid color areas, trim alignment, and the printed panels against the approved proof before finishing.
How can I avoid problems during pack-out?
The first practical check is whether the bottom locks cleanly with the actual product inside. Then test insertion, removal, top closure access, and the carton after it has been moved through the intended handling steps. Keep type and barcodes away from scores and glue zones, and include bleed in the artwork file as required by the printer's prepress standard. If an insert holds the product, size the insert to the product's real profile so the item does not rattle inside the cavity.
Custom Packaging Lane quotes crash boxes from a 100-unit minimum, with pricing from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are available, and a free dieline is drawn from the product dimensions. The $19.99 sample kit is credited toward the first order. Start with custom packaging solutions when the structure, board, artwork, and insert need to be reviewed as one request.
Frequently Asked Questions
What does crash box mean in packaging?
A crash box is a folding carton with a crash-lock bottom. Folded panels and locking tabs create the base when the carton is opened, so the bottom geometry is part of the package specification. The finished structure still needs a fit check with the actual product, insert, board, glue pattern, and packing sequence before the artwork is released.
How is a crash-lock bottom different from an auto-lock bottom?
A crash-lock bottom and an auto-lock bottom both use interlocking panels, but their folds, tabs, glue areas, and setup motions differ. The useful comparison is the assembled base under the intended product load. Review how the operator opens the carton, inserts the product, closes the top, and stores the flat blanks before choosing the structure.
What board range is common for a crash box?
SBS, C1S, or C2S paperboard is commonly referenced in the typical 12 to 24 pt range for folding cartons. Kraft board is commonly referenced in the typical 18 to 24 pt range. Board thickness must match the score pattern, glue tabs, locking panels, product weight, print coverage, and finish.
How should I measure a crash-lock carton?
Measure the usable cavity as inside length x width x depth and list outside dimensions separately. About 1/16 in, or 1.5 mm, is a common planning tolerance. Include the product, lid, cap, accessories, wrap, and insert in the packed position, then allow room for the folded locking panels and tabs.
Can a crash box include an insert?
A crash box can include an insert when the product or accessories need defined support or separate cavities. The insert changes the available cavity and the removal path, so measure the insert with the outer carton and product together. Check the assembled package to confirm the item does not catch on tabs or rattle inside.
