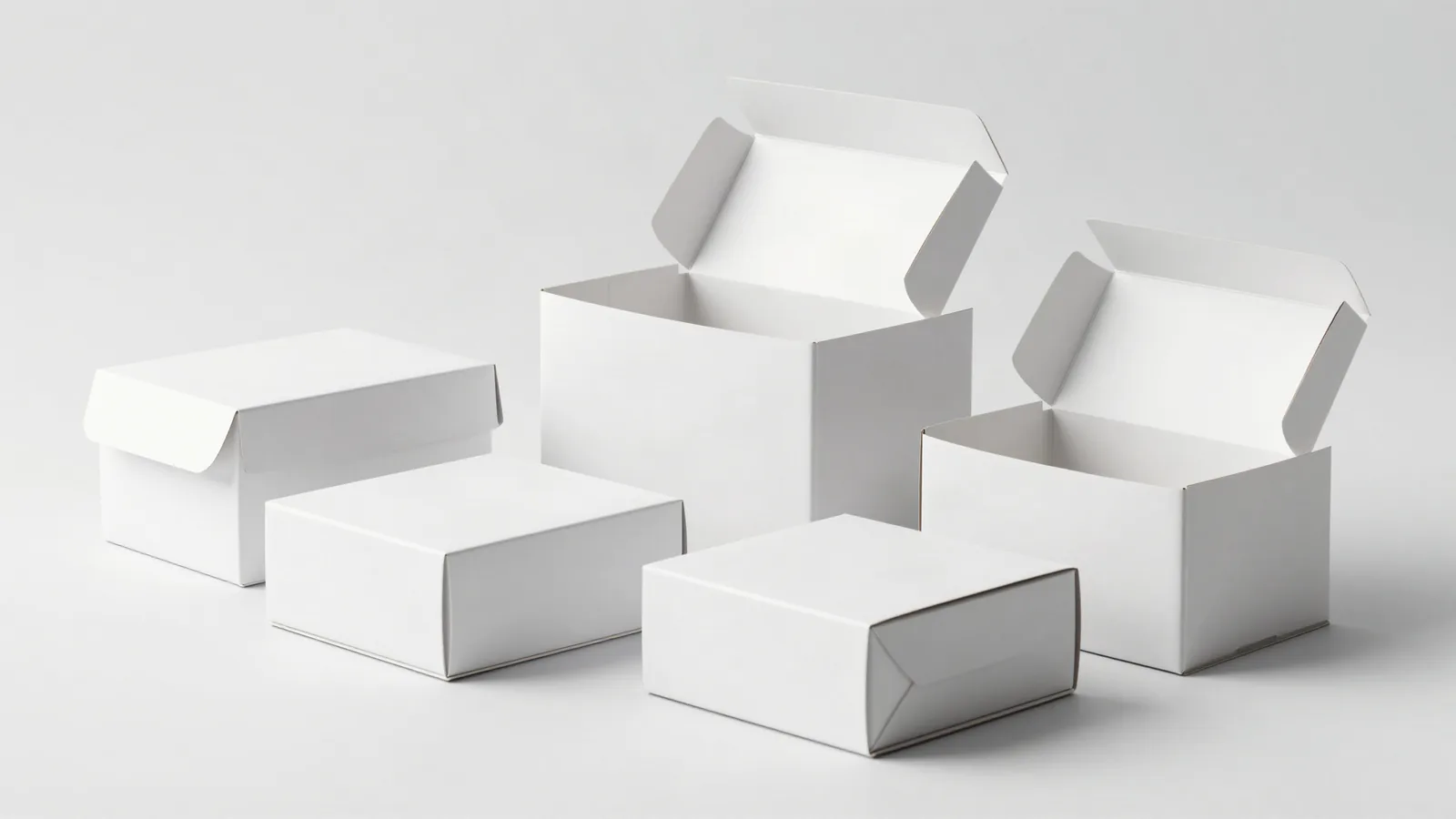

Custom graphic packaging is artwork planned on a real package, not a logo dropped onto a blank rectangle. The dieline, which is the flat cutting template for the package, sets the panels, scores, folds, glue tabs, and closure before the artwork is placed. Start with the product, the opening motion, and the panel a buyer sees first.
What should the artwork make clear before anyone handles the package?
Reading order comes first. Mark the brand, product name, variant, short description, and handling direction, then keep those elements clear of scores, glue flaps, seams, and closure points. A panel map helps because the front, sides, top, and back appear in a different order during opening. Send artwork as separate elements when possible. Flag any color, pattern, or image that must continue across a fold.
Which material supports the graphic treatment?
Folding-carton board means paperboard cut and scored into shape. Typical industry references include SBS, C1S, or C2S in the 12 to 24 pt range. Kraft board is commonly 18 to 24 pt, and its brown surface changes how ink is perceived. A rigid wrap uses chipboard at 1.5 to 3 mm with 100 to 157 gsm art paper. A corrugated shipper can use E, B, or C flute, with 32 ECT as a common stacking-strength reference.
| Material direction | Typical industry reference | Graphic consequence |
|---|---|---|
| Folding-carton board | SBS, C1S, or C2S, 12 to 24 pt | Scored panels carry detailed artwork |
| Kraft board | 18 to 24 pt | Brown stock shifts printed color |
| Rigid wrap | Chipboard 1.5 to 3 mm, 100 to 157 gsm art paper | Wrapped sheets create separate rigid surfaces |
| Corrugated shipper | E, B, or C flute, 32 ECT reference | Transport graphics sit on a fluted board structure |
Which print process matches the artwork?
Offset CMYK suits detailed images, gradients, small type, and broad color coverage on paperboard. Digital printing can suit short runs, mockups, or an early artwork direction. Flexo is a common corrugated process when the outer shipper needs simpler graphics. Choose the print route after the stock and surface are known, because the substrate changes color appearance and image detail. A press check looks at ink coverage, trim, fold registration, and whether small type remains open.
Which finish adds contrast without hiding the design?
Matte and gloss lamination put a surface film over the printed panel, while soft-touch changes the feel under the hand. Spot UV puts a selected glossy area over a matte field. Foil stamping, embossing, and debossing give a logo or pattern physical definition. Mark every effect on a separate mask. PET window film, commonly 0.2 to 0.3 mm, can create a visible product area, but window patching needs its own placement on the dieline.
How should the structure control the reading order?
A straight tuck end and reverse tuck end place the opening panels differently. An auto-lock bottom or crash-lock base changes assembly and support. A sleeve wraps an inner package, while a two-piece rigid format separates lid and base. Pick the opening motion before final artwork placement. The logo, product image, and information panels need to read correctly with the package closed and after it is turned over.
How do dimensions affect a graphic dieline?
Inside measurements are usually the clearest fit reference. Write dimensions as length x width x depth, and label them as product size, desired inside size, or finished outside size. About 1/16 in, or 1.5 mm, is a common packaging tolerance reference, but board, structure, and finish still need confirmation. Include the product, insert, and entry direction. Type set too close to a score, missing bleed, and RGB art converted for press are easy proof-stage problems to catch.
Which products give useful graphic packaging references?
Custom printed macaron packaging boxes show how a product-facing panel can carry the presentation. Custom greeting card packaging is a reference for broad flat artwork and panel hierarchy. Custom drone packaging boxes show why outside graphics and inside organization can need separate planning. Custom tin packaging gives a different printed surface direction. These are catalog references, not universal specifications.
How do I start a graphic packaging request?
Custom Packaging Lane quotes custom graphic packaging to spec from a 100-unit minimum. Pricing is from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are included. A free dieline supports preparation. The $19.99 sample kit is credited to the first order. Send product dimensions and artwork status through custom packaging design.
Frequently Asked Questions
What is custom graphic packaging?
Custom graphic packaging is a package whose artwork, color, images, typography, and panel layout are planned with the physical structure. The dieline controls the folds, scores, glue flaps, and closure, so a logo cannot be placed correctly without the package map. Material color, print process, and finish also change the result. A useful brief connects the product dimensions and opening motion to those graphic decisions.
When is digital printing a better fit than offset?
Digital printing can suit short runs, mockups, or an early artwork direction, while offset CMYK is commonly used for detailed folding-carton artwork with images, gradients, small type, or broad color coverage. Flexo is a common corrugated process for simpler outer-shipper graphics. Stock and surface should be selected before the print route because they affect color and detail.
How should I prepare graphics for folds and glue areas?
A packaging artwork file should show the front, sides, top, bottom, scores, seams, glue flaps, closure, and any window or insert. Keep the logo, product name, and important image clear of trim and joining areas. Supply finish masks separately and mark graphics that continue across a fold. The proof is where you catch type too close to a score or bleed left off the file.
Can a graphic package use multiple finishes?
A graphic package can combine matte or gloss lamination with soft-touch, spot UV, foil stamping, embossing, or debossing. Each treatment needs a separate artwork mask because it covers a defined area and behaves differently on the stock. PET window film, commonly 0.2 to 0.3 mm, is a separate construction detail. Keep finish and window boundaries away from scores, seams, and glue areas.
What dimensions should I send for a graphic packaging quote?
Send product length, width, and depth, and label each value as product size, desired inside size, or finished outside size. Include the closure, insert, opening direction, and any clearance concern. About 1/16 in, or 1.5 mm, is a common packaging tolerance reference. A product sample or reliable drawing helps connect those dimensions to the final dieline.
