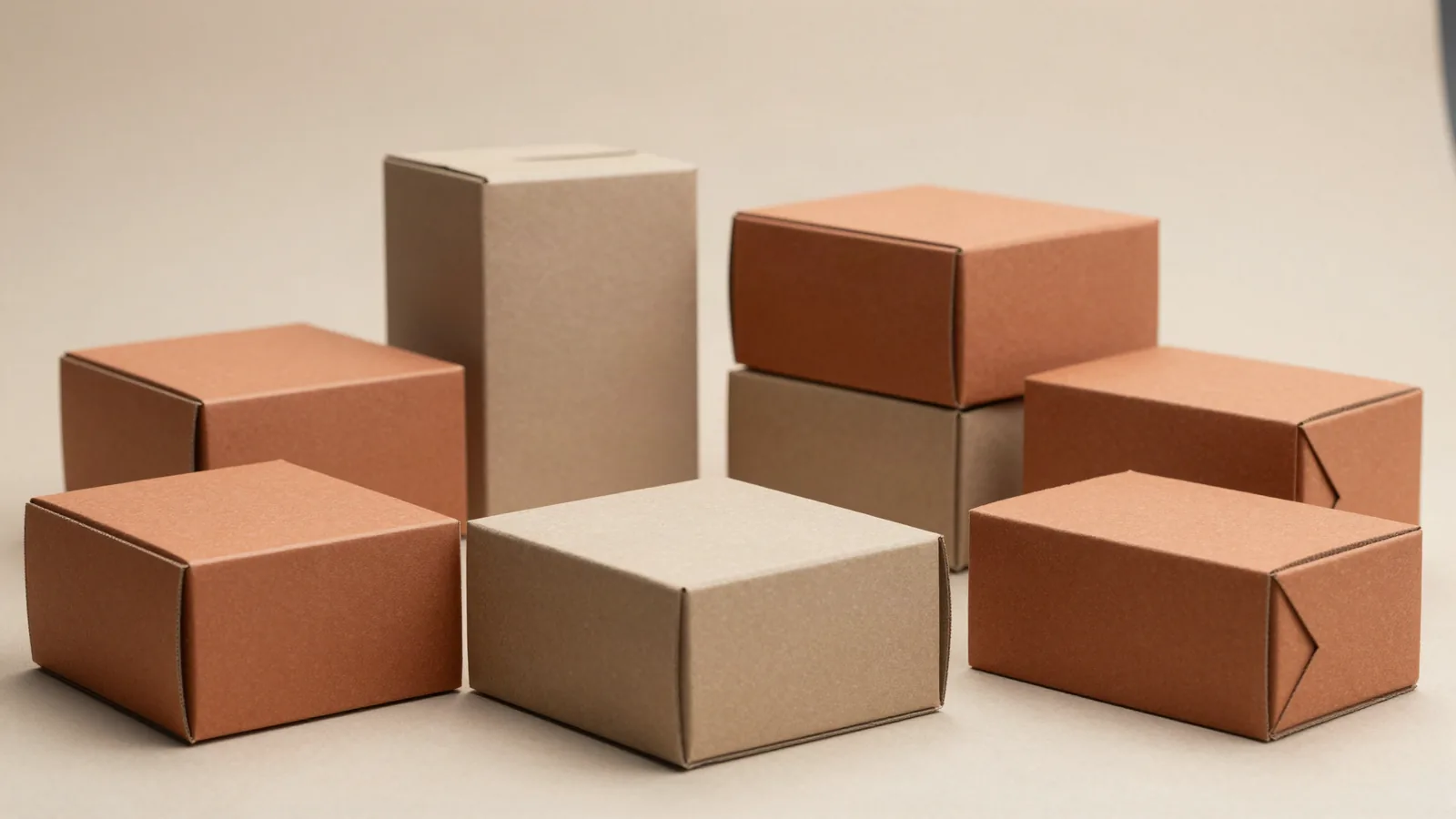

A DNA box is packaging for a kit of components, not a generic carton with a label added later. Start with the tube, card, pouch, instruction sheet, return element, and insert that will sit inside the finished package. A component map names each part and shows its orientation. That map controls the cavity layout, panel order, opening motion, and the space left for approved product information.
What should a DNA box hold and reveal?
The component map is the first fit check because every cavity needs a part, an orientation, and a removal path. State whether the customer opens the package from the top, front, drawer, or sleeve. That choice changes the insert, panel order, closure, and the amount of information visible before opening.
| Kit element | Packaging decision | Planning question |
|---|---|---|
| Collection component | Define cavity, clearance, and orientation | How will the item stay in position? |
| Printed instructions | Reserve a panel, pocket, or insert location | Should the information show before opening? |
| Return pouch or inner pack | Choose a sleeve, compartment, or layered insert | Does the inner piece need separate protection? |
| Brand presentation | Plan front, side, top, and opening panels | Which surface carries the main message? |
Which paperboard materials fit a folding DNA carton?
SBS, C1S, or C2S paperboard in the 12 to 24 pt range is a common folding-carton reference. SBS is solid bleached sulfate board. C1S has a coated side for print, while C2S has coating on both sides. Kraft board in the 18 to 24 pt range gives the carton a different surface and print direction. Board caliper changes stiffness, fold behavior, edge feel, and how the carton supports the insert. Confirm the grade against the finished size and construction.
How should an insert and inside fit be planned?
Inside length x width x depth gives the clearest fit reference for a DNA box. Mark every cavity, lift point, fold, glue area, and clearance zone before the dieline is finalized. About 1/16 in, or 1.5 mm, is a common tolerance reference, but the usable clearance depends on board, construction, finishing, and the actual component shape.
Foam inserts can separate parts and control movement. Paperboard inserts can create folded compartments and a defined opening order. Check the insert with the actual tube, card, pouch, and instruction set. A cavity cut to the outside drawing can leave the real component loose or make removal awkward.
Which box structure suits the opening experience?
A two-piece rigid box gives a separate lid-and-base presentation, while a drawer or slide box creates a pull-out sequence. A magnetic flap changes the front opening and closure area. Straight tuck end, reverse tuck end, auto-lock bottom, and crash-lock construction suit folding cartons with different erection and closing actions. Choose the structure after deciding whether the kit opens from the top, lifts from a base, pulls from a sleeve, or appears in separate layers.
Could a window or inner-pack laminate help the kit presentation?
A PET window is useful when one component should be visible before opening, and PET window material in the 0.2 to 0.3 mm range is a common patching reference. A metallized or foil laminate can add a barrier layer to an inner pouch. These structures commonly use PET, AL, and PE layers. The foil or metallized layer blocks light and can slow moisture and odor transfer, but the outer box, inner pack, insert, and window should be specified for separate jobs.
How should print and finish be placed on a DNA box?
Offset CMYK suits detailed paperboard artwork, while digital printing can suit a short run or an early artwork test. Matte or gloss lamination changes reflection. Soft-touch changes the surface feel. Spot UV, foil stamping, embossing, and debossing can draw attention to selected marks. Put each finish on its own artwork layer and keep it clear of folds, seams, glue areas, openings, and surfaces hidden by the insert.
Prepress review should catch low-resolution art, RGB color shifts during press conversion, missing bleed, and type set too close to a score. Keep the front panel, side panels, closure, seams, window opening, and insert coverage visible on the proof.
Which product references can help me choose a format?
Start with custom DNA test kit boxes for the direct format reference. Compare custom foam box inserts when cavity separation controls the brief. If the package needs a reusable metal presentation, embossed tin boxes give another structure to review. For the artwork route, use custom packaging design.
What should I send before requesting a proof?
- Send the actual kit components or dependable product drawings.
- State inside measurements, outside measurements, clearance, and component orientation.
- Identify the board, rigid wrap, insert, window, or inner-pack direction.
- Mark the opening, closure, folds, seams, glue areas, and lift points.
- Supply artwork panels, logo placement, color direction, and separate finish layers.
- Share the delivery location and planned quantity.
How does CPL handle a DNA box request?
CPL quotes DNA box projects from a 100-unit minimum, with pricing from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping, free design support, and a free dieline support the preparation process. The $19.99 sample kit is credited to the first order.
Frequently Asked Questions
How should a DNA kit box be sized?
A DNA kit box should be sized around the actual tube, card, pouch, instruction sheet, return element, and insert. Define inside length, width, depth, clearance, insert thickness, opening direction, and closure. Product drawings are more useful than a generic box template because the component arrangement determines the cavity layout and the outside panels.
Which board is common for a folding DNA carton?
SBS, C1S, or C2S paperboard in the 12 to 24 pt range is a common folding-carton reference. Kraft board in the 18 to 24 pt range gives a different surface direction. The suitable grade depends on the carton structure, insert, finished size, print coverage, and required stiffness.
Can an insert be added to a DNA box?
A DNA box can use foam or paperboard inserts to separate collection components, reduce movement, and guide the opening sequence. Define each cavity, clearance, lift point, and insert material before the dieline is prepared. Check the insert with the actual component because a small shape change can affect the interior and closure.
When is a window useful on DNA kit packaging?
A window is useful when a component should be visible before the package opens. PET window material in the 0.2 to 0.3 mm range is a common patching reference. Plan the opening with trim, folds, glue areas, insert placement, and artwork-safe regions so the visible area does not disrupt the carton structure.
What artwork details belong on a DNA box dieline?
A DNA box dieline should show the front panel, side panels, top or bottom closure, seams, folds, glue zones, insert coverage, and any window opening. Keep logos, instructions, and approved copy away from hidden or creased areas. Separate CMYK artwork from foil, spot UV, embossing, debossing, and other finish layers.
