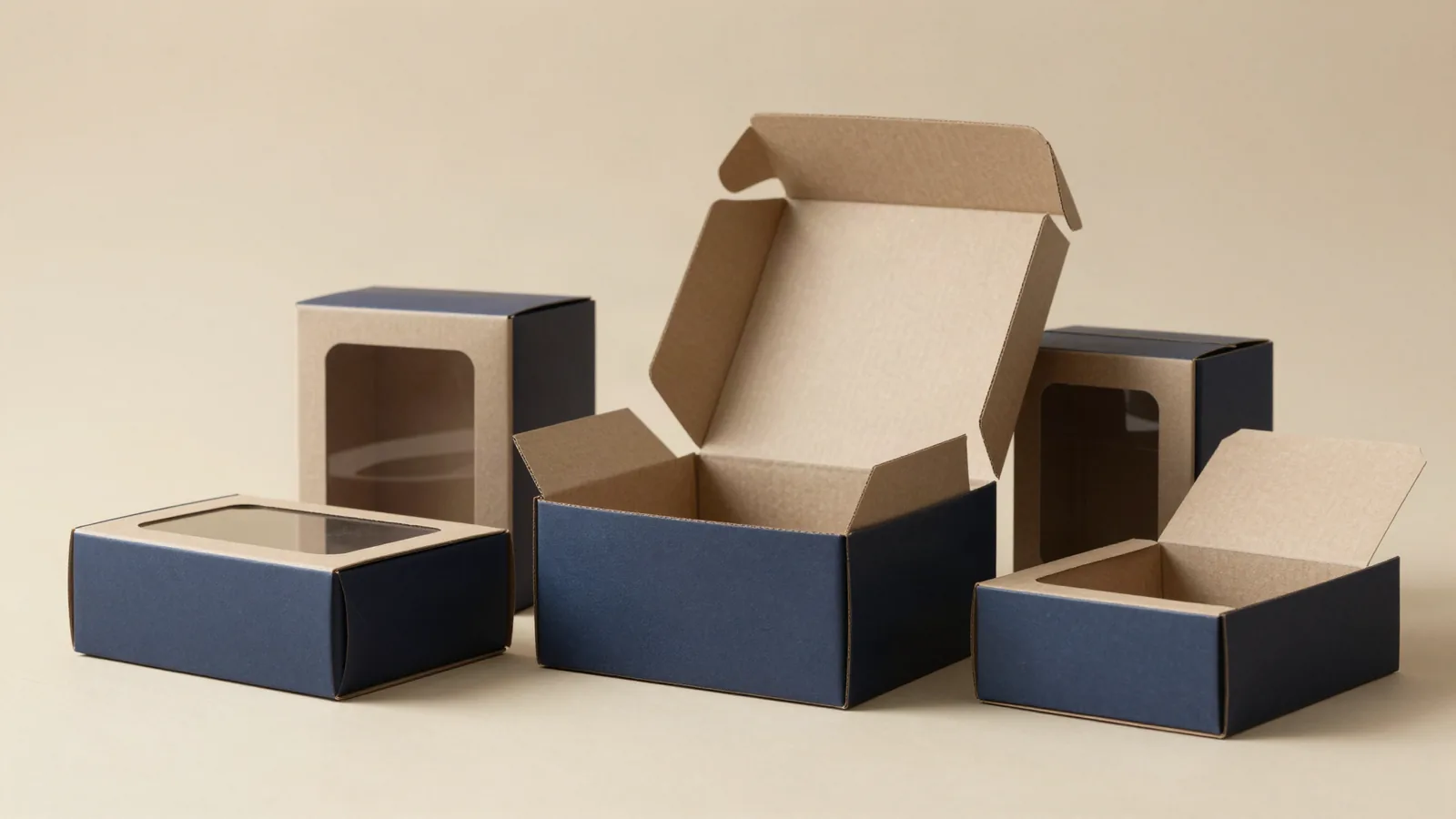

An FOL box is a full overlap corrugated pattern. FOL means full overlap: its flaps extend across the full panel width and meet or overlap at closure. That coverage changes folding, sealing, stacking, and product fit. Start with packed dimensions, closure method, and shipping route before artwork.
What does FOL mean in corrugated packaging?
Full overlap flaps cover the top or bottom panel across its width, so the closure has more board under the seam than a regular slotted layout. Mark flap length, score placement, slots, glue areas, and tape line on the blank, then erect the sample. Check clearance and product stability before choosing the final print layout.
How is an FOL box different from an RSC?
The meeting point of the flaps is the main structural difference. An RSC, or regular slotted container, has flaps that meet at the center seam. An FOL box uses flaps that run across the panel and overlap or meet at closure. That changes the blank, fold sequence, tape line, stacking face, and the way a packer closes the box.
Load both patterns with the product. Check erection, hand access, support, outer-shipper fit, and the case-pack flute direction. Bench performance can change when the case pack limits access to the seam.
| Structure | Flap or opening pattern | Buyer checkpoint |
|---|---|---|
| FOL box | Flaps extend across the full panel and overlap or meet | Flap clearance, closure, stack orientation, and seam |
| RSC | Regular slotted flaps meet at the center | Slot layout, tape line, and product support |
| Roll end tuck top mailer | Sidewalls and a tuck top form a parcel-style closure | Opening motion, inside fit, and display role |
| Corrugated box with insert | Outer box works with a separate fitted component | Cavity size, retention, removal, and assembly order |
Which flute and strength reference fit an FOL box?
E-flute has a finer corrugated profile and is often chosen when a thinner board direction or finer print detail matters. B-flute and C-flute have different thickness and stacking behavior. 32 ECT means a 32 edge crush test reference, used to discuss the board's resistance at the edge. Treat E, B, C, and 32 ECT as trade references; the loaded box, stack, and shipping route decide the selection.
Flute direction belongs on the drawing. It affects bending, panel behavior, and how the FOL box sits in a case pack. Mark the outside printed face, then review scores, slots, glue areas, closure panels, and the direction in which the box will stack.
How should I measure an FOL box?
Write inside length x width x depth for product fit, then record orientation, insert clearance, flap direction, slots, scores, glue area, closure, and assembled outside dimensions. About 1/16 in, or 1.5 mm, is a common planning tolerance reference. Treat it as a drawing start. Board thickness, product shape, protective material, loading direction, overlap, and closure force decide final clearance. Check the flat blank and erected box together.
How should FOL artwork be placed?
Flexographic printing is a common starting point for corrugated surfaces. Digital printing can suit a short run or artwork test. Offset CMYK is more common on detailed paperboard graphics or a paperboard component used with the corrugated box. Finish choices such as matte or gloss lamination, soft-touch, spot UV, foil stamping, embossing, and debossing belong to the surface that will actually receive them.
Keep type and small marks away from scores, slots, overlap flaps, tape lines, and glue zones. Check a large graphic across erected corners because the flat file cannot show every break caused by folding. Review ink coverage at the seam and under the tape line before approving the proof.
Can an FOL box use an insert?
An insert changes the cavity and the pack-out order at the same time. Custom foam box inserts can be compared when the product needs a shaped inner component. Wine box packaging is a reference for organized placement around a tall product. Shoe box packaging raises a different question about volume, access, and lid clearance.
Check cavity length, width, depth, retention, removal, and assembly order with the closed FOL box. If it is too tight, the packer forces the product into place. If it is too loose, the product moves before the closure is sealed.
What belongs in an FOL box quote?
A quote brief needs the loaded box details first. Include:
- Packed dimensions, product weight, orientation, and inside clearance.
- FOL or RSC preference, flap direction, closure method, and case-packing sequence.
- E, B, or C flute direction and the 32 ECT reference to review.
- Flexo or digital print coverage, scores, slots, tape lines, glue zones, and finish areas.
- Outer shipping format, delivery location, quantity target, and artwork status.
CPL quotes FOL boxes to spec from a 100-unit minimum, with pricing from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping and free design support are available, and we draw a free dieline and send a digital proof before anything prints. The $19.99 sample kit is credited to the first order. For larger order planning, use wholesale custom packaging and send the packed dimensions with the artwork status.
Frequently Asked Questions
What changes when the closure uses full overlap flaps?
Full overlap flaps cover the panel and change the closure seam, fold sequence, tape path, and stacking face. The extra board can support a continuous top or bottom layer, but the flaps still need clearance to fold. Check the loaded box, case arrangement, and closure motion before approving the FOL blank.
Does an FOL box always need 32 ECT?
32 ECT is a common edge crush test reference for corrugated planning, not a universal selection. An FOL box still needs a board choice that matches its loaded weight, stack, flute direction, closure, and shipping route. Treat 32 ECT as a reference to review with the erected box and case arrangement.
Should FOL dimensions be inside or outside?
Use inside length x width x depth to describe product fit, then record assembled outside dimensions for parcel space and case packing. Keep flap overlap, slots, scores, glue areas, and insert clearance with the drawing. About 1/16 inch, or 1.5 mm, is a common planning tolerance reference.
Can artwork cross an FOL corner?
FOL artwork can cross an erected corner, but the flat file will hide the break created by the fold. Mark scores, slots, overlap flaps, tape lines, and glue zones, then inspect the assembled sample. Keep small type and marks away from those areas, and check ink coverage at the seam.
What does an insert change in an FOL box?
An insert changes the cavity, product retention, and loading order inside an FOL box. Check length, width, depth, removal, replacement, and assembly with the closed box. A tight cavity slows pack-out and a loose cavity lets the product move before closure. The insert and outer box need one shared fit check.
