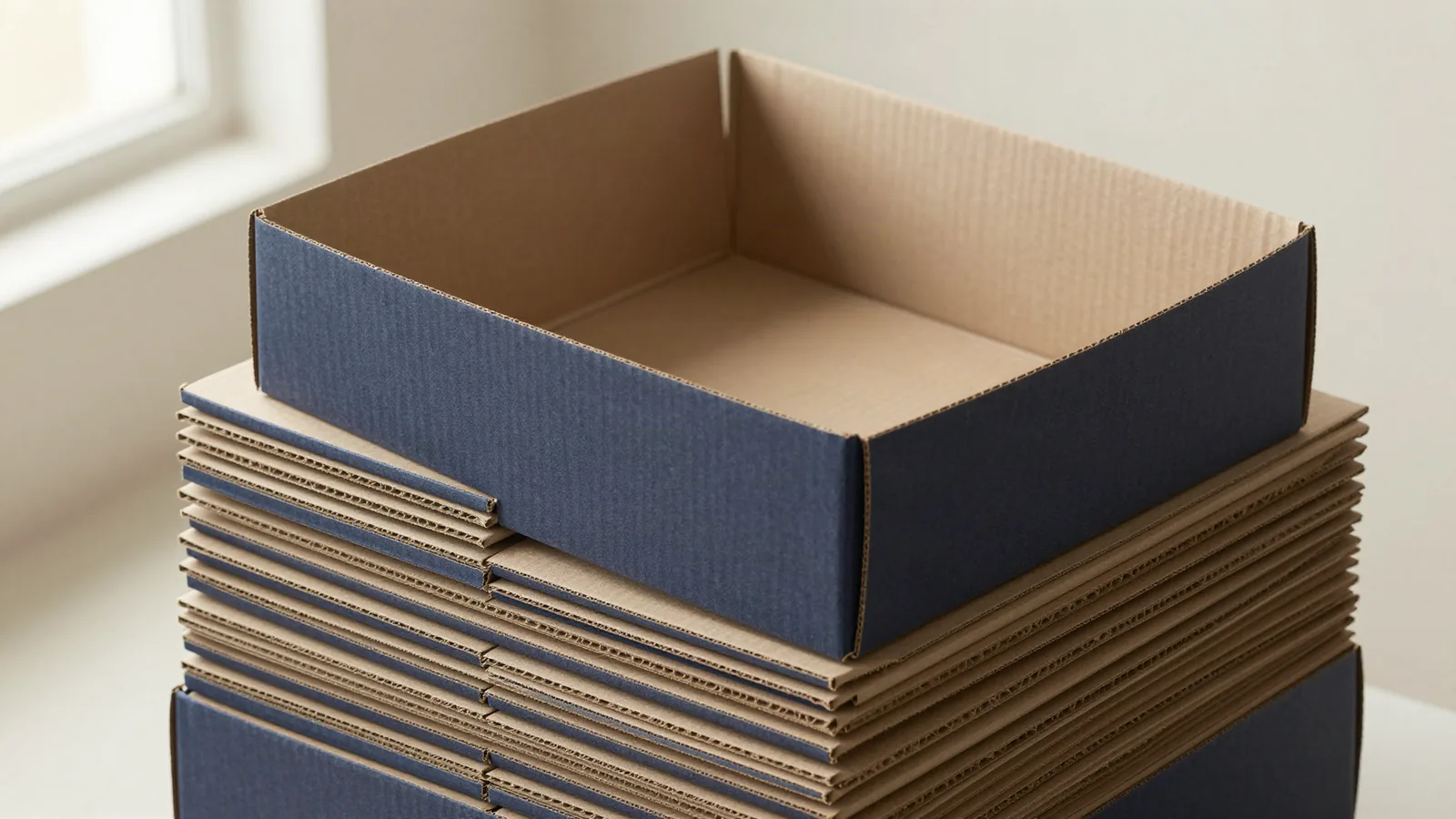

Corrugated board is a fluted paper layer glued between liner sheets. A carton brief has to describe more than the printed outside panel: it needs the packed item, inside clearance, flute direction, closure, outside dimensions, print method, and delivery route. A dieline is the flat cutting template that shows panels, scores, glue tabs, bleed, and cut lines before production. Start with the parcel the customer will receive, then decide whether the carton is a mailer, a folding shipper, or an outer layer around another package. Compare custom shipping boxes, custom folding shipping boxes, custom corrugated mailer boxes, and custom candle shipping boxes as structural references.
What should a corrugated shipping carton accomplish?
The packed product should arrive in the same position in which it left the packing bench. Write down how the item enters, where it sits, whether it needs a sleeve or insert, how the top closes, and which panels carry shipping marks or brand artwork. If the carton is the customer-facing package, the opening sequence matters as much as the outside footprint. If it is an outer shipper, keep the presentation box and shipping layer separate in the brief. That one distinction prevents a decorative carton from carrying a job it was never sized to handle.
Which flute and board reference fit the shipment?
A flute is the corrugated paper wave between the liner sheets. E flute has a finer profile and a relatively smooth print surface, B flute has a medium profile, and C flute has a larger profile with more interior depth. A 32 ECT reference describes a common compression-strength convention for corrugated board, not a complete carton design. Board grade, flute direction, carton size, contents, stacking, and the delivery route still belong in the request.
| Reference | Common planning use | Check on the drawing |
|---|---|---|
| E flute | Compact panels and print-oriented surfaces | Fine detail, inner fit, closure |
| B flute | General carton support and handling | Stacking direction, outside size |
| C flute | Larger shipping-oriented profile | Clearance, packing route, board strength |
| 32 ECT | Compression-strength reference | Carton size, contents, stacking context |
| FEFCO 0427 | Roll-end tuck-top mailer structure | Opening, panel order, tuck sequence |
Which closure should the carton use?
FEFCO 0427 is a standard code for a roll-end tuck-top mailer, so it gives the structural conversation a precise starting point. An auto-lock bottom changes how the carton is formed and loaded. A crash-lock bottom changes the same packing step in a different way. A straight tuck end or reverse tuck end may suit a folding carton that sits inside another shipping layer. Choose the closure from the packing station, the customer's opening motion, and the question of whether the carton is the parcel exterior. Show the assembled structure before the print panels are final.
How do I measure the packed carton?
Inside measurements describe the space the product, insert, sleeve, and void fill actually occupy; outside measurements describe the parcel the carrier sees. Write the box as length x width x depth and label which set you mean. A common packaging convention allows about 1/16 in, or 1.5 mm, tolerance, subject to the structure and contents. For US ground shipping, dimensional weight is a carrier billing method based on outside size, and a common planning formula is L x W x H / 139. Record inner fit and outer carton separately because a small change in height can change that calculation.
Which print method fits corrugated board?
Flexo printing is a common reference for corrugated surfaces, especially when the artwork includes brand panels, handling language, directional marks, or simple graphics. Offset CMYK suits detailed paperboard artwork, including a separate litho laminated surface applied to corrugated board. Digital printing can suit a short run or version test when the selected board and process support it. Put print coverage, ink colors, white areas, seams, scores, closures, and finish on the dieline. Low-resolution art, RGB files converted for press, type too close to a score, and missing bleed all create avoidable prepress trouble.
How should bottles, candles, and other products be packed?
Product orientation decides the inside job. State the contact points, cap or lid position, accessory placement, and removal path. A bottle carton may need separation between the container and its closure. A candle shipper may need defined top clearance and an interior presentation layer. A small apparel or subscription carton may need open space for cards or tissue. Compare Woozy bottle boxes and votive candle boxes when a shaped item needs a coordinated shipping carton.
What should go into a carton quote?
A usable request names the packed product, inside fit, outside dimensions, flute, board reference, structure, closure, print method, coverage, finish, insert or sleeve, quantity, destination, and artwork status. Say whether the carton is the final parcel exterior or an outer shipper around another package. If several sizes share one design, identify the largest packed arrangement and which structural decisions stay fixed. Custom packaging solutions can keep the carton, inner package, and shipping layer in one request.
Custom Packaging Lane quotes to spec from a 100-unit minimum, with pricing from $0.49 per unit at volume, quoted to spec. Production is typically 8 to 10 business days after proof approval, plus delivery. Free US shipping, free design support, and a free dieline are available. Order the $19.99 sample kit, which is credited toward the first order.
Frequently Asked Questions
What is FEFCO 0427?
FEFCO 0427 is a standard code for a roll-end tuck-top mailer structure. The code identifies the structural family, while the product dimensions, board profile, flute direction, closure clearances, and print panels still need their own drawing. Review the assembled mailer before artwork is locked so the tuck sequence and visible panels match the way the carton will be packed.
Do E, B, and C flutes change how a carton behaves?
E flute has a finer corrugated profile, B flute has a medium profile, and C flute has a larger profile. Those differences affect panel thickness, interior space, surface detail, fold behavior, and handling. A carton also depends on board reference, flute direction, outside size, contents, stacking context, and closure, so the flute name alone does not select the finished box.
What does 32 ECT mean for a shipping carton?
32 ECT is a common corrugated board compression-strength reference. It gives the quote request a board-performance term, but it does not specify the carton structure, flute, dimensions, closure, or stacking arrangement. State the product, outside size, board reference, flute direction, and shipping context so the 32 ECT discussion relates to the actual carton rather than a number on its own.
Can corrugated cartons use flexo, offset, or digital printing?
Corrugated cartons commonly use flexo for brand panels, handling marks, and simpler graphics. Offset CMYK can support detailed paperboard artwork or a separate litho laminated surface, while digital printing can suit a short run or version test when the board and process support it. Mark colors, coverage, white areas, scores, seams, closures, and finish on the dieline.
Why do carton quotes separate inside and outside dimensions?
Inside dimensions describe the space available for the product, insert, sleeve, and void fill. Outside dimensions describe the parcel a carrier handles and the size used in dimensional-weight planning. Write length x width x depth and label each measurement set. A common packaging convention allows about 1/16 in, or 1.5 mm, tolerance, subject to the structure and contents.
